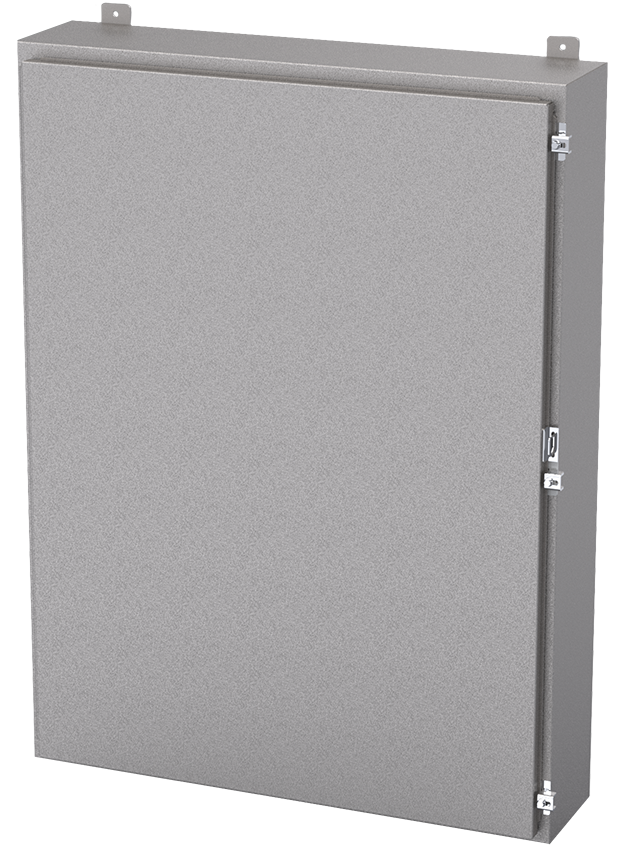

Wall Mount Enclosures
One Door Type 12


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 14 gauge steel, 304 or 316 stainless steel, or
    0.08 5052 aluminum
  • Seams continuously welded and ground smooth
  • Hybrid sealing flange around all sides of door face
  • Oil resistant gasket
  • Gasket retainer on Steel enclosures
  • Continuous hinge with stainless steel pin
    (Stainless Steel Hinge on SS Models)
  • Zinc plated door clamps
  • Pad lockable hasp and staple
  • Mounting feet on top and bottom
  • 3/8-16 collar studs for mounting panels
  • Grounding stud on door
  • Stiffeners added to enclosure sizes over 30”

Industry Standards

  • UL and CSA Listed
  • UL/cUL NEMA Type 12
  • IEC 60529
  • IP52

Finish

  • Number 4 Brushed and Blended Finish for all Stainless-Steel Enclosures
  • ANSI 61 Gray Powder Coating Outside, White Powder Coating Inside for all Steel Enclosures
  • Ask about Custom Powder Coating Color Options!

Optional Accessories

  • Subpanels
  • Keyed Quarter Turn Latches
  • Window Kits
  • Louvers
  • Alternate Handles
