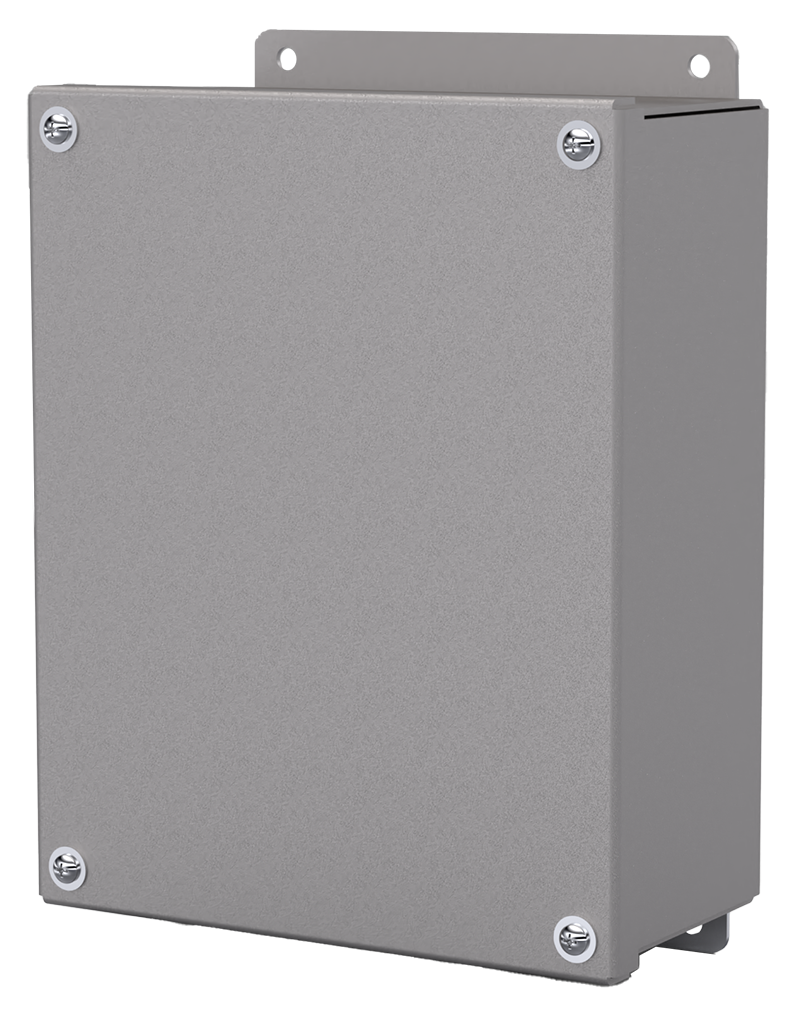

JIC Enclosures
Screw Cover NEMA 12
READY TO ORDER?
EMF offers a wide range of
customization options on all standard enclosures
Customization Information
Product Specifications
- 14 or 16 gauge steel
- Seams continuously welded and ground smooth
- Oil resistant gasket
- Captivated screws threaded into sealed wells for liquid-tight seal
- Mounting feet on top and bottom
- Weld nuts for mounting panels
- Grounding stud on door
Industry Standards
- UL and CSA Listed
- UL/cUL NEMA Type 12
- IEC 60529
- IP52
Finish
- Brushed & blended finish for stainless steel and aluminum enclosures
- ANSI 61 gray powder coating inside and out for carbon steel enclosures
Optional Accessories
- Sub Panels
- Knock Outs / Cut Outs
- Window Kits
In order to view the drawings, you must register with EMF Company.
Register with EMF Company or Log-in if you have an account.
