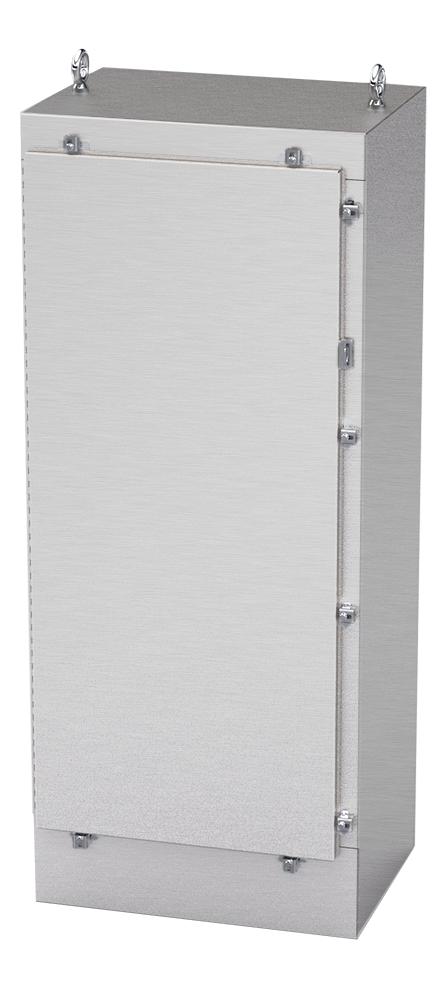

Free Standing Enclosures
One & Two Door Type 4/4X


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 10 or 12 gauge steel or 304 stainless steel
  • Seams continuously welded and ground smooth
  • Hybrid sealing flange around all sides of door face
  • Oil resistant gasket
  • Gasket retainer on steel enclosures
  • Continuous hinge with stainless steel pin
    (Stainless Steel hinge on SS Models)
  • Stainless steel door clamps
  • Pad lockable hasp and staple
  • Mounting holes in bottom for securing to floor
  • Unistrut rails for mounting panels
  • Panels adjustable front to back
  • Grounding stud on door
  • ¾” Heavy duty lifting eyes
  • Stiffeners added for additional strength



Industry Standards

  • UL and CSA Listed
  • UL/cUL NEMA Type 4/4X
  • IEC 60529
  • IP66



Finish

  • Brushed & blended finish for stainless steel and aluminum enclosures
  • ANSI 61 gray powder coating outside, white powder coating inside for Steel enclosures



Optional Accessories

  • Subpanels
  • Window Kits
  • Print Pockets
  • Alternate Latching
  • Insulation
